PVC pipe joint injection molding machine

Product details

1. Product introduction

(1) The machine is equipped with high performance hard chrome plated or stainless steel PVC special screw;

(2) Multi-section pneumatic cooling device, precise control of material temperature, to meet the needs of various products;

(3) Equipped with more than two groups of core pulling device, large torque plasticizing hydraulic motor;

(4) Can be widened according to customer needs, customized differentiated appearance style.

2. Technical specifications

　　Product specification：NHTX270/PVC-NHTX430/PVC

　　Injection weight(pvc)：743g-2646g

　　Closing force：2700KN-34300KN

　　Tie rod spacing (width * height)：580mm×580mm-730mm×730mm

　　Machine weight：7.5t-15.4t

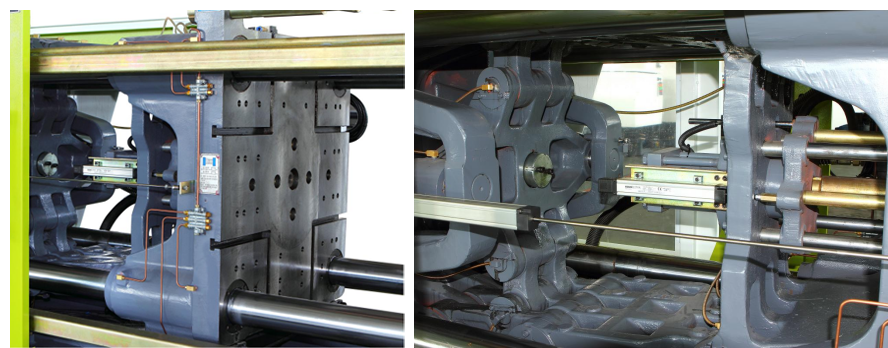

3. Machine parts

PVC管接頭注塑機機器部件

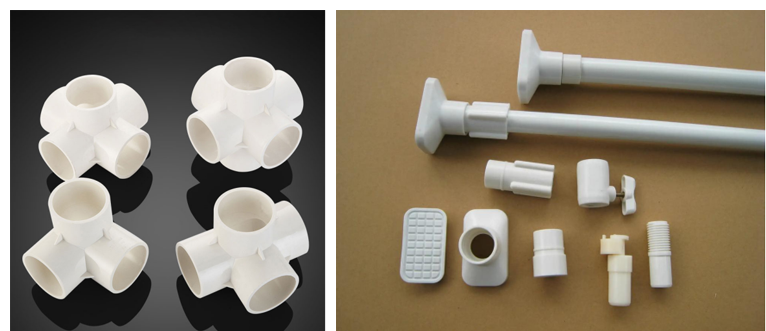

4.Process samples

PVC管接頭注塑機加工樣品

5.Industrial use

　　The PVC pipe joint injection molding machine produced by the company has a wide range of uses, widely used in construction materials, automotive parts and other industries.

PVC管接頭注塑機行業用途

6.Production Equipment

　　The company has a group of experienced high quality technical personnel, at the same time equipped with CNC gantry milling, CNC boring machine, CNC machining center and other kinds of production and processing equipment, advanced technology, reliable quality, products sold in domestic cities and overseas more than 10 countries and regions.

伺服節能精密注塑機生產設備
